Phoenix Blocks - PHNX 2320908 QUINT-PS/ 1AC/24DC/ 5/CO
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463565200108
Catalog Number - 2320908
Country of Origin - Thailand
Depths - 125 mm
ERP_productname - PHNX 2320908 QUINT-PS/ 1AC/24DC/ 5/CO
Packaging
1 ea
EAN
Part #
160529
Catalog #
2320908
Commercial reference
2320908
12-Digit UPC:
463565200108
Catalog Number:
2320908
Country of Origin:
Thailand
Depths:
125 mm
ERP_productname:
PHNX 2320908 QUINT-PS/ 1AC/24DC/ 5/CO
Family Brand Name:
Phoenix Products
Heights:
130 mm
Output Voltage:
24 V
Voltage:
10 Volt
Widths:
40 mm
SoneparProductId:
SKU_US_73718836

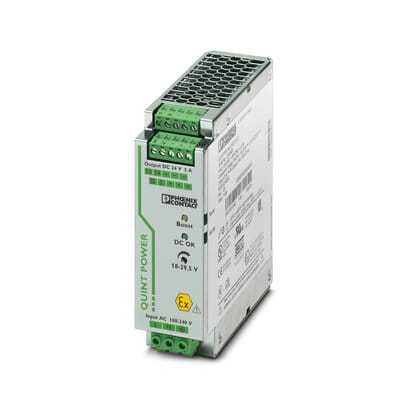

Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 5 A Features: For superior system availability; Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently; Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms; Preventive function monitoring; Optimum protection with dip coating for 100 % humidity - Approvals: cULus Listed; EAC; cULus Recognized; Type approved; IECEx; IECEE CB Scheme; ATEX; DNV GL; CSA; UL Listed; cUL Listed; UL Recognized; cUL Recognized
