Phoenix Blocks - PHNX 2688051 AXL F DO32/1 1F
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356501579
Catalog Number - 2688051
Country of Origin - Germany
Depths - 54 mm
ERP_productname - PHNX 2688051 AXL F DO32/1 1F
Packaging
1 ea
EAN
Part #
197612
Catalog #
2688051
Commercial reference
2688051
12-Digit UPC:
046356501579
Catalog Number:
2688051
Country of Origin:
Germany
Depths:
54 mm
ERP_productname:
PHNX 2688051 AXL F DO32/1 1F
Family Brand Name:
Phoenix Products
Heights:
126.1 mm
Output Voltage:
24 V
Widths:
53.6 mm
SoneparProductId:
SKU_US_73218552

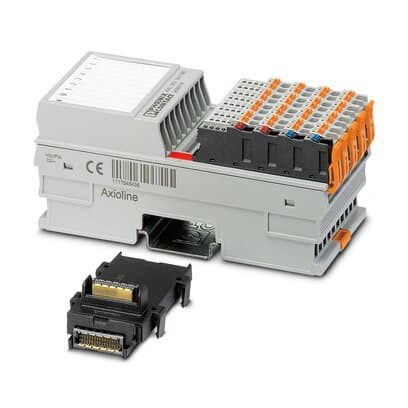

Axioline F, Digital output module, Digital outputs: 32, 24 V DC, connection technology: 1-conductor, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors Features: 32 digital outputs; 24 V DC, 500 mA; Connection of actuators in single-wire technology; Minimum update time of < 100 ?s; Device rating plate stored - Approvals: BV; BSH; cULus Listed; EAC; LR; RINA; PRS; DNV GL; KR; ABS; UL Listed; cUL Listed
