Phoenix Blocks - PHNX 2688080 AXL F AO8 1F
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356501442
Catalog Number - 2688080
Country of Origin - Germany
Depths - 54 mm
ERP_productname - PHNX 2688080 AXL F AO8 1F
Packaging
1 ea
EAN
Part #
197621
Catalog #
2688080
Commercial reference
2688080
12-Digit UPC:
046356501442
Catalog Number:
2688080
Country of Origin:
Germany
Depths:
54 mm
ERP_productname:
PHNX 2688080 AXL F AO8 1F
Family Brand Name:
Phoenix Products
Heights:
126.1 mm
Widths:
53.6 mm
SoneparProductId:
SKU_US_73133029

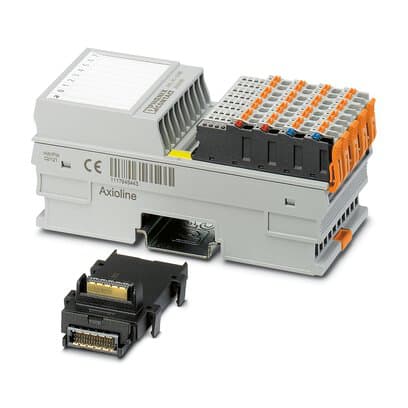

Axioline F, Analog output module, Analog outputs: 8, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors Features: 8 analog, bipolar output channels for the connection of either voltage or current signals; Connection of actuators in 2-wire technology; Voltage ranges: 0 V ... 10 V, .10 V, 0 V ... 5 V, .5 V; Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, .20 mA; Short-circuit-proof outputs; Device rating plate stored; Safe analog value processing with SAFE AI and other components - Approvals: BV; BSH; cULus Listed; EAC; LR; RINA; PRS; DNV GL; KR; ABS; UL Listed; cUL Listed
