Phoenix Blocks - PHNX 2688527 AXL F AO4 1H
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356744251
Catalog Number - 2688527
Country of Origin - Germany
Depths - 54 mm
ERP_productname - PHNX 2688527 AXL F AO4 1H
Packaging
1 ea
EAN
Part #
197618
Catalog #
2688527
Commercial reference
2688527
12-Digit UPC:
046356744251
Catalog Number:
2688527
Country of Origin:
Germany
Depths:
54 mm
ERP_productname:
PHNX 2688527 AXL F AO4 1H
Family Brand Name:
Phoenix Products
Heights:
126.1 mm
Widths:
35 mm
SoneparProductId:
SKU_US_73201029

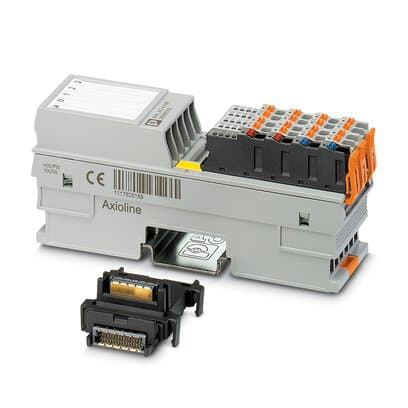

Axioline F, Analog output module, Analog outputs: 4, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connectors Features: 4 analog output channels for the connection of either voltage or current signals; Bipolar voltage outputs, unipolar current outputs; Connection of actuators in 2-wire technology; Voltage ranges: 0 V ... 10 V, .10 V, 0 V ... 5 V, .5 V; Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA; Short-circuit-proof outputs; No derating in all ranges; Short signal rise times; Driving of high loads; Device rating plate stored - Approvals: BV; BSH; cULus Listed; EAC; LR; RINA; PRS; NK; DNV GL; KR; ABS; UL Listed; cUL Listed
