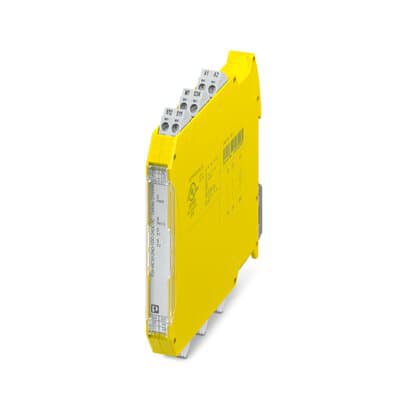

Phoenix Blocks - PHNX 2700499 PSR-MC30-2NO-1DO-24DC-SP

CopyCopy
Phoenix Blocks - PHNX 2700499 PSR-MC30-2NO-1DO-24DC-SP

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 463569128774

  • Catalog Number - 2700499

  • Country of Origin - Germany

  • Depths - 114.5 mm

  • ERP_productname - PHNX 2700499 PSR-MC30-2NO-1DO-24DC-SP

Packaging

  • 1 ea

EAN

Part #

189260

Catalog #

2700499

Commercial reference

2700499

12-Digit UPC:

463569128774

Catalog Number:

2700499

Country of Origin:

Germany

Depths:

114.5 mm

ERP_productname:

PHNX 2700499 PSR-MC30-2NO-1DO-24DC-SP

Family Brand Name:

Phoenix Products

Heights:

116.6 mm

Voltage:

2 Volt

Widths:

12.5 mm

SoneparProductId:

SKU_US_73608754

Safety relay for emergency stop and safety doors up to SIL 3, Cat. 4, PL e, 1- or 2-channel operation, automatic or manual, monitored start, cross-circuit detection, 2 enabling current paths, US = 24 V DC, plug-in Push-in terminal block Features: Up to Cat.4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061; Low housing width of just 12.5 mm; Two-channel control; 2 enabling current paths, 1 digital signal output; Manually monitored and automatic activation in a single device; Cross-circuit detection; Time saving push-in connection, tools not required; Potentials can be easily looped through . ideal for BUS applications; Intuitive use through colour coded actuation lever; Can be combined with the MSTB 2,5 range; Quick and convenient testing using integrated test option - Approvals: cULus Listed; EAC; Functional Safety; GL; UL Listed; cUL Listed
