Phoenix Blocks - PHNX 2701494 AXL E EIP DIO16 M12 6P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356763481
Catalog Number - 2701494
Country of Origin - Germany
Depths - 30.5 mm
ERP_productname - PHNX 2701494 AXL E EIP DIO16 M12 6P
Packaging
1 ea
EAN
Part #
228589
Catalog #
2701494
Commercial reference
2701494
12-Digit UPC:
046356763481
Catalog Number:
2701494
Country of Origin:
Germany
Depths:
30.5 mm
ERP_productname:
PHNX 2701494 AXL E EIP DIO16 M12 6P
Family Brand Name:
Phoenix Contact
Heights:
185 mm
Output Voltage:
24 V
Widths:
60 mm
SoneparProductId:
SKU_US_317521385

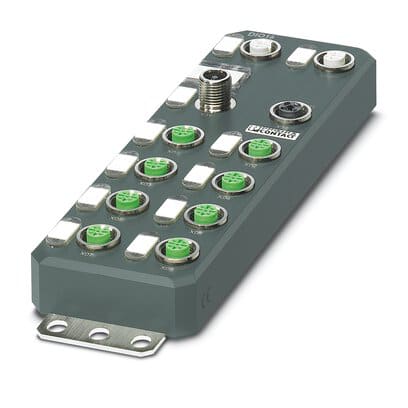

Axioline E, Digital I/O device, EtherNet/IP™, M12 fast connection technology, Digital inputs: 16, 24 V DC, connection technology: 4-conductor, Digital outputs: 16, 24 V DC, 500 mA, connection technology: 3-conductor, Plastic housing, degree of protection: IP65/IP67 Features: Connection to EtherNet/IP™ network using M12connectors (D-coded); Transmission speed of 10 Mbps and 100 Mbps; Connection of digital sensors and actuators using M12connectors (A-coded); Diagnostic and status indicators; Short-circuit and overload protection of the sensor supply; IP65/IP67 degree of protection - Approvals: cULus Listed; EtherNet/IP CONFORMANCE TESTED TM; UL Listed; cUL Listed
