Phoenix Blocks - PHNX 2701520 AXL E EC DI8 DO8 M12 6P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463567637070
Catalog Number - 2701520
Country of Origin - Germany
Depths - 30.5 mm
ERP_productname - PHNX 2701520 AXL E EC DI8 DO8 M12 6P
Packaging
1 ea
EAN
Part #
172094
Catalog #
2701520
Commercial reference
2701520
12-Digit UPC:
463567637070
Catalog Number:
2701520
Country of Origin:
Germany
Depths:
30.5 mm
ERP_productname:
PHNX 2701520 AXL E EC DI8 DO8 M12 6P
Family Brand Name:
Phoenix Products
Heights:
185 mm
Output Voltage:
24 V
Widths:
60 mm
SoneparProductId:
SKU_US_73825292

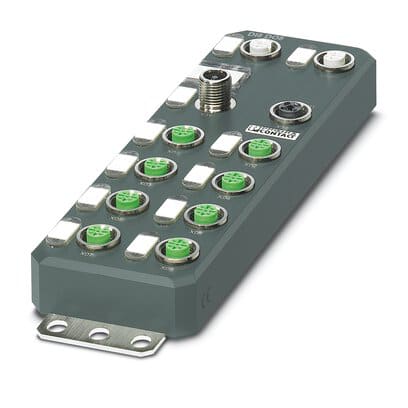

Axioline E, Digital I/O device, EtherCAT, M12 fast connection technology, Digital inputs: 8, 24 V DC, connection technology: 4-conductor, Digital outputs: 8, 24 V DC, 500 mA, connection technology: 3-conductor, Plastic housing, degree of protection: IP65/IP67 Features: Connection to EtherCAT® network using M12connectors (D-coded); Transmission speed of 100 Mbps; Connection of digital sensors and actuators using M12connectors (A-coded); Diagnostic and status indicators; Short-circuit and overload protection of the sensor supply; IP65/IP67 degree of protection - Approvals: cULus Listed; EtherCAT; UL Listed; cUL Listed
