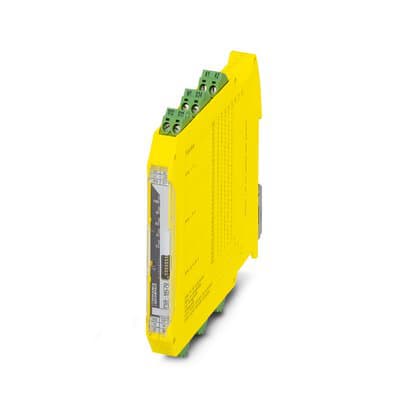

Phoenix Blocks - PHNX 2702095 PSR-MC70-2NO-1DO-24DC-SP

Safety relay for emergency stop, safety doors, light grid up to SIL 1, Cat. 1, PL e, 1- or 2-channel operation, cross-circuit detection, can be retriggered, fall back/on delay 0.2 s ... 60 s, 2 enabling current paths, US = 24 V DC, pluggable Push-in terminal block Features: Up to Cat. 1/PL c according to ISO 13849-1, SILCL 1 according to IEC 62061; Depending on the application, up to Cat.3/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061; Low housing width of just 12.5 mm; Single and two-channel control; 2 enabling current paths, 1 digital signal output; Manually monitored and automatic activation in a single device; Time saving push-in connection, tools not required; Potentials can be easily looped through . ideal for BUS applications; Intuitive use through colour coded actuation lever; Can be combined with the MSTB 2,5 range; Quick and convenient testing using integrated test option - Approvals: cULus Listed; Functional Safety; UL Listed; cUL Listed
