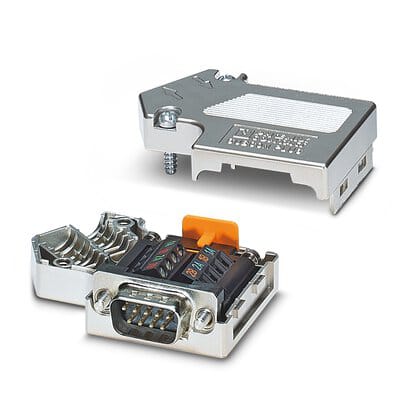

Phoenix Blocks - PHNX 2708232 SUBCON-PLUS-PROFIB/SC2

D-SUB connector, 9-pos., male connector, 35. cable entry, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks Features: Termination resistor can be connected; Screw connection; Cable entry under 35±; Change to the D-SUB orientation through a reversible connection block; Metal housing for high level of immunity to interference at maximum transmission speed; Vibration and shock resistance according to EN 50155; Suitable for all common Fast Connect PROFIBUS cables and RS-485 bus lines - Approvals: EAC; cULus Recognized; ATEX; CSA; UL Recognized; cUL Recognized
