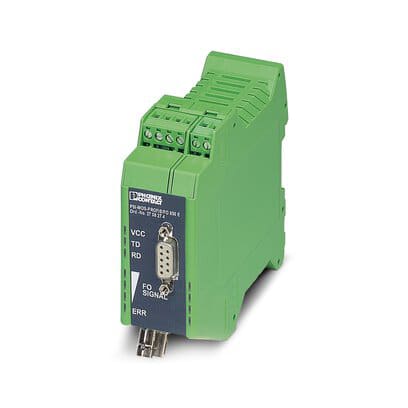

Phoenix Blocks - PHNX 2708274 PSI-MOS-PROFIB/FO 850 E

FO converter with integrated optical diagnostics, alarm contact, for PROFIBUS up to 12 Mbps, terminal device with one FO interface (BFOC), 850 nm, for PCF/fiberglass cable (multimode) Features: Connections can be plugged in using a COMBICON screw terminal block; Can be combined with the PSI copper repeater in a modular way using DIN rail connectors; Supply voltage and data signals routed through via DIN rail connectors; Automatic data rate detection or fixed data rate setting via DIP switches; High-quality electrical isolation between all interfaces (PROFIBUS // fiber optic ports // power supply // DIN rail connector); Redundant power supply possible by means of optional system power supply unit; Approved for use in zone 2; Integrated optical diagnostics for continuous monitoring of fiber optic paths; Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1; Floating switch contact for leading alarm generation in relation to critical fiber optic paths; Suitable for all data rates up to 12 Mbps; Bit retiming for any cascading depth; Shipbuilding approval in accordance with DNV GL - Approvals: cULus Listed; EAC; cULus Recognized; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
