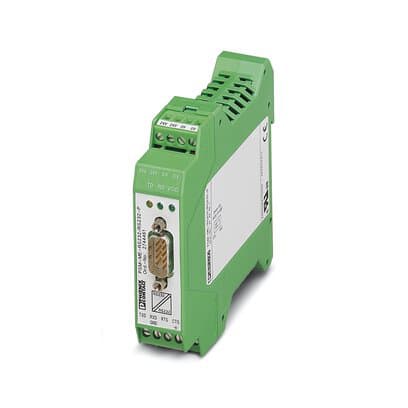

Phoenix Blocks - PHNX 2744461 PSM-ME-RS 232/RS232-P

Interface converter, for the isolation of RS-232 (V.24) interfaces, 4 channels, rail-mountable Features: Mounting on standard EN DIN rails; In the case of variable cable lengths, the RS-232 connection on the field side can be established conveniently using plug-in screw terminal blocks; High-quality 3-way isolation up to 2 kV (VCC // RS-232 // RS-232); Integrated surge protection with transient discharge to the DIN rail; Maximum transmission speed of 115.2 kbps; Transmission of TxD/RxD data channels and RTS/CTS control lines; 24 V DC or AC power supply suitable for the control cabinet; Active data transmission indicated by separate data indicators for the transmit and receive channels; Shipbuilding approval in accordance with DNV GL - Approvals: cULus Listed; cULus Recognized; EAC; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
