Phoenix Blocks - PHNX 2775210 UDK 4-MTK-P/P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180685168
Catalog Number - 2775210
Color - Gray
ERP_productname - PHNX 2775210 UDK 4-MTK-P/P
Family Brand Name - Phoenix Products
Packaging
1 ea
EAN
Part #
184209
Catalog #
2775210
Commercial reference
2775210
12-Digit UPC:
179180685168
Catalog Number:
2775210
Color:
Gray
ERP_productname:
PHNX 2775210 UDK 4-MTK-P/P
Family Brand Name:
Phoenix Products
Length:
63.5 mm
Mounting Type:
NS 35/7
Widths:
6.2 mm
SoneparProductId:
SKU_US_71808200

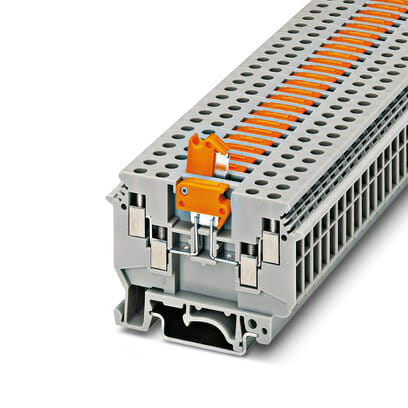

Knife disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage: 630 V, nominal current: 16 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.2 mm. - 6 mm., mounting: NS 35/7,5, NS 35/15, NS 32, color: gray Features: Closed housing of double-level terminal blocks; Space-saving design just 6.2 mm wide; User-friendly disconnect knife operation - Approvals: EAC; cULus Recognized; CSA; UL Recognized; cUL Recognized
