Phoenix Blocks - PHNX 2791113 UKK 5-2DIO/O-UL/UR-UL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180724386
Catalog Number - 2791113
Color - Gray
Country of Origin - China
ERP_productname - PHNX 2791113 UKK 5-2DIO/O-UL/UR-UL
Packaging
1 ea
EAN
Part #
225390
Catalog #
2791113
Commercial reference
2791113
12-Digit UPC:
179180724386
Catalog Number:
2791113
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 2791113 UKK 5-2DIO/O-UL/UR-UL
Family Brand Name:
Phoenix Products
Length:
56 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_73207116

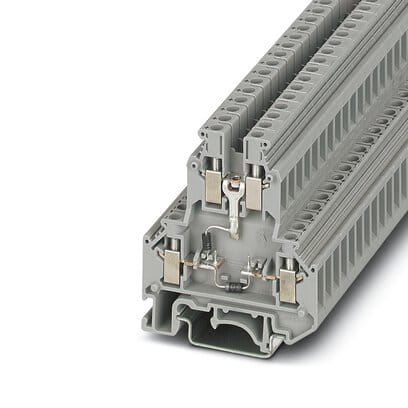

Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm., cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: Double-level diode terminal blocks with various forms of wiring are available for a wide range of applications - Approvals: cULus Recognized; EAC; UL Recognized; cUL Recognized
