Phoenix Blocks - PHNX 2800570 MBKKB 2 5-DIO/U-O

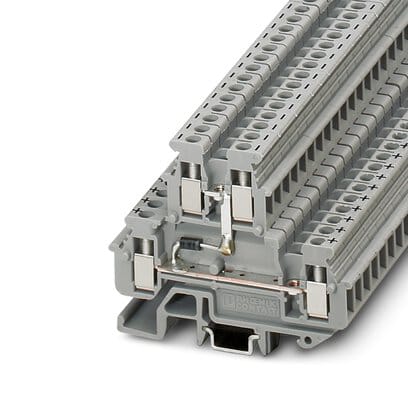

Mini feed-through terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.2 mm. - 4 mm., mounting: NS 15, NS 35/7,5, NS 35/15, color: gray Features: Thanks to the different versions of double-level diode terminal blocks, a variety of switching tasks can be performed; Space saving thanks to compact design and mounting option on a 15 mm DIN rail; Clear arrangement thanks to marking of all terminal points; Easy potential distribution thanks to standardized plug-in bridges - Approvals: EAC
