Phoenix Blocks - PHNX 2810780 MINI MCR-SL-SHUNT-UI-NC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463563053416
Catalog Number - 2810780
Country of Origin - Germany
Depths - 101.2 mm
ERP_productname - PHNX 2810780 MINI MCR-SL-SHUNT-UI-NC
Packaging
1 ea
EAN
Part #
217826
Catalog #
2810780
Commercial reference
2810780
12-Digit UPC:
463563053416
Catalog Number:
2810780
Country of Origin:
Germany
Depths:
101.2 mm
ERP_productname:
PHNX 2810780 MINI MCR-SL-SHUNT-UI-NC
Family Brand Name:
Phoenix Products
Heights:
93.1 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_73555971

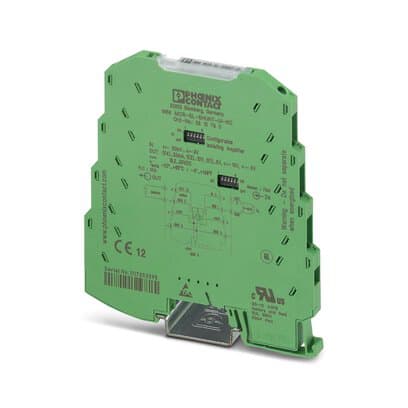

MCR 3-way isolating amplifier, with configurable input/output, for electrical isolation and conversion of analog signals in the mV range, single-pos. as well as 2-pos. with screw connection, pre-configured Features: Power supply possible via the foot element (TBUS); Ideal for converting signals for shunt measurements; Low power consumption; Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of mV signals to create standard analog signals; Up to 280 signal combinations can be configured using DIP switches; 3-way isolation - Approvals: cULus Listed; cULus Recognized; ATEX; EAC Ex; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
