Phoenix Blocks - PHNX 2811103 MCR-VAC-UI-O-DC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181254004
Catalog Number - 2811103
Depths - 114.5 mm
ERP_productname - PHNX 2811103 MCR-VAC-UI-O-DC
Family Brand Name - Phoenix Products
Packaging
1 ea
EAN
Part #
132116
Catalog #
2811103
Commercial reference
2811103
12-Digit UPC:
179181254004
Catalog Number:
2811103
Depths:
114.5 mm
ERP_productname:
PHNX 2811103 MCR-VAC-UI-O-DC
Family Brand Name:
Phoenix Products
Heights:
99 mm
Widths:
22.5 mm
SoneparProductId:
SKU_US_73656377

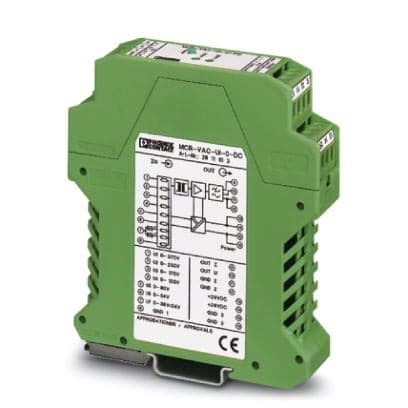

MCR voltage measuring transducer, for alternating current voltages from 0..20 V AC to 0..440 V AC, output signal 0..10 V/0(4)..20 mA Features: Replacement device MACX MCR-VAC-(PT) 2906239 with 8 measurement ranges from 0 V ... 20 V AC to 0 V ... 660 V AC, output signals: 0 V ... 10 V / 0 (4) mA ... 20 mA; Adjustable voltage ranges; Bidirectional output signals; 3-way isolation; ZERO/SPAN adjustment .20%; Tool-free parameterization of measured values; Teach-in configuration of the measured value range - Approvals: cULus Recognized; EAC; UL Recognized; cUL Recognized
