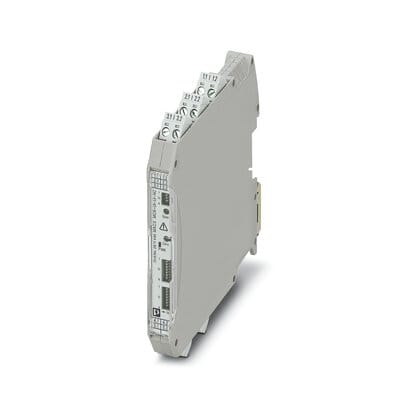

Phoenix Blocks - PHNX 2811446 MACX MCR-UI-UI-NC

Configurable 3-way isolating amplifier with safe electrical isolation, 24 V, power bridging. DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V/OUT 0 ... 20 mA), screw connection, SIL. Features: Power supply possible via DIN rail connector; Over 1600 signal conversions can be set via DIP switches on the front; Installation in zone 2 permitted; Up to SIL 2 according to EN 61508; 3-way electrical isolation; Analog signal conditioner for isolating, filtering, amplifying, and converting standard analog signals; Configurable input and output signals, including bipolar current and voltage signals; 10 kHz limit frequency for time-critical applications; Status indicator for supply voltage; Active or passive output; Plug-in screw or spring-cage connection technology (Push-in technology) - Approvals: cULus Listed; EAC Ex; IECEx; ATEX; DNV GL; UL Listed; cUL Listed; Functional Safety
