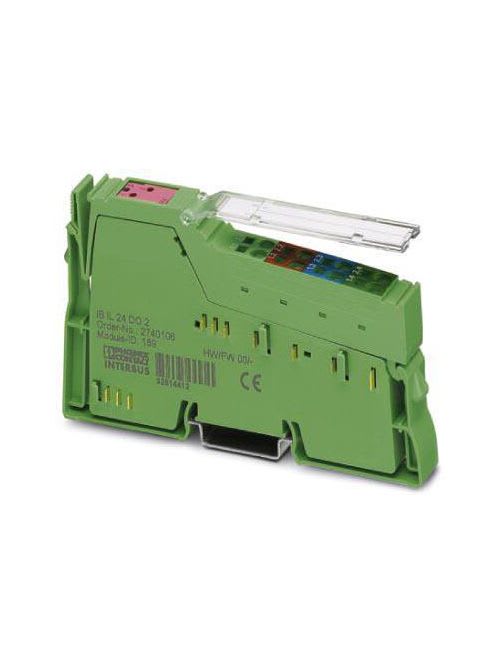

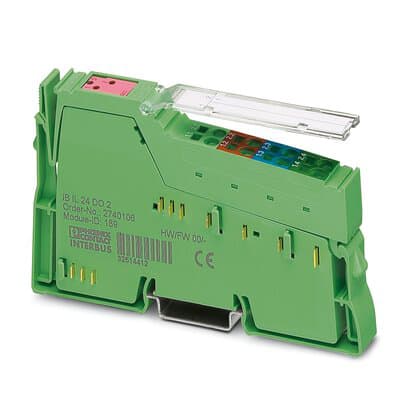

Phoenix Blocks - PHNX 2861263 IB IL 24 DO 2-2A-PAC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918894203
Amperage - 4 Amp
Catalog Number - 2861263
Country of Origin - Germany
Depths - 71.5 mm
Packaging
1 ea
EAN
Part #
168479
Catalog #
2861263
Commercial reference
2861263
12-Digit UPC:
017918894203
Amperage:
4 Amp
Catalog Number:
2861263
Country of Origin:
Germany
Depths:
71.5 mm
ERP_productname:
PHNX 2861263 IB IL 24 DO 2-2A-PAC
Family Brand Name:
Marathon Special Products
Heights:
119.8 mm
Number of Poles:
4 Pole
Output Voltage:
24 V
Voltage:
24 VDC
Widths:
12.2 mm
SoneparProductId:
SKU_US_72417121
Inline, Digital output terminal, Digital outputs: 2, 24 V DC, 2 A, connection technology: 4-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and labeling field Features: 2 digital outputs; Connection of actuators in 2, 3, and 4-wire technology; Nominal current per output: 2 A; Total current of the terminal: 4 A; Short-circuit-proof and overload-protected outputs; Approved for use in a safety-related segment circuit - Approvals: cULus Listed; EAC; ATEX; UL Listed; cUL Listed; UL Recognized
