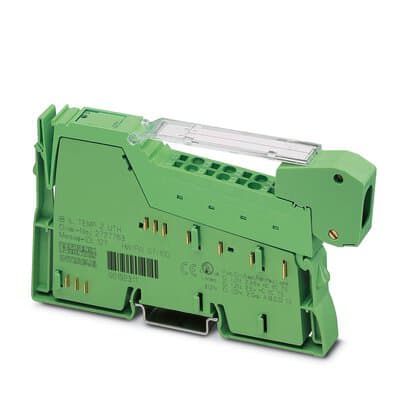

Phoenix Blocks - PHNX 2861386 IB IL TEMP 2 UTH-PAC

Inline, Temperature measurement terminal, Analog UTH inputs: 2 (Thermocouples or linear voltage), connection technology: 2-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and labeling field Features: 2 differential inputs for thermocouples or linear voltage; 1 input for an external cold junction, Pt 1000 or Ni 1000; The channels are parameterized independently of one another via the bus system; Internal detection and compensation of cold junction temperature (can be parameterized); Absolute and differential temperature measurement (can be parameterized); Pt 1000 sensor in the vicinity of the connection terminal blocks of the thermocouple inputs for internal measurement of the cold junction temperature; Measured values can be represented in three different formats - Approvals: BV; BSH; cULus Listed; EAC; LR; RINA; DNV GL; ABS; UL Listed; cUL Listed; UL Recognized
