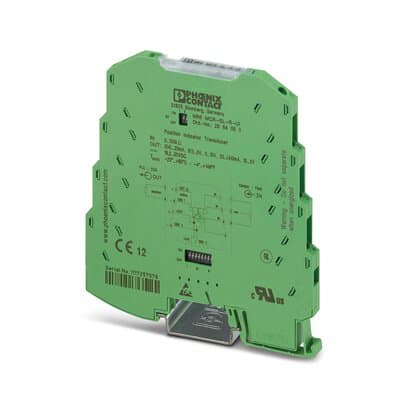

Phoenix Blocks - PHNX 2864095 MINI MCR-SL-R-UI

MCR potiposition transducer for conversion of potentiometer positions into a standard analog signal, 0 ? input... 100 ? to 0 k? ... 100 k? Features: Power supply possible via the foot element (TBUS); Automatic potentiometer detection without manual adjustment; Error indication via diagnostic LED and analog signal; For 100 ? to 100 k? potentiometers; potentiometer signals to create standard signals; Configurable measuring range and output signals; Highly-compact potentiometer transducer for electrical isolation, conversion, amplification, and filtering of; Input and output signals can be configured via DIP switches; 3-way isolation; A potentiometer sub-range can be linearized via the \"teach-in\" switch on the device - Approvals: cULus Listed; cULus Recognized; ATEX; EAC; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
