Phoenix Blocks - PHNX 2864406 MINI MCR-SL-I-I
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189561586
Catalog Number - 2864406
Country of Origin - Germany
Depths - 101.2 mm
ERP_productname - PHNX 2864406 MINI MCR-SL-I-I
Packaging
1 ea
EAN
Part #
213145
Catalog #
2864406
Commercial reference
2864406
12-Digit UPC:
179189561586
Catalog Number:
2864406
Country of Origin:
Germany
Depths:
101.2 mm
ERP_productname:
PHNX 2864406 MINI MCR-SL-I-I
Family Brand Name:
Phoenix Contact
Heights:
93.1 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_130341389

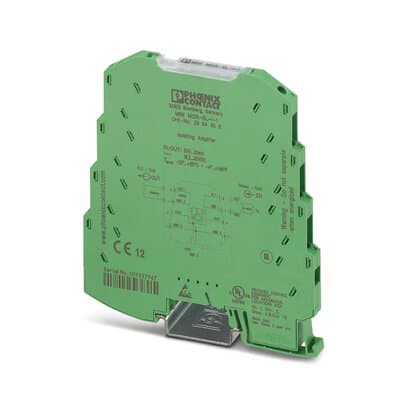

MCR 3-way isolating amplifier, for electrical isolation of analog signals, with screw connection, input signal: 0(4) mA ... 20 mA, output signal: 0(4) mA ... 20 mA Features: Power supply possible via the foot element (TBUS); Entry-level alternative to configurable signal conditioners; Low power consumption; 3-way isolation; Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals; Fixed signal combinations - Approvals: BV; cULus Listed; cULus Recognized; ATEX; EAC Ex; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
