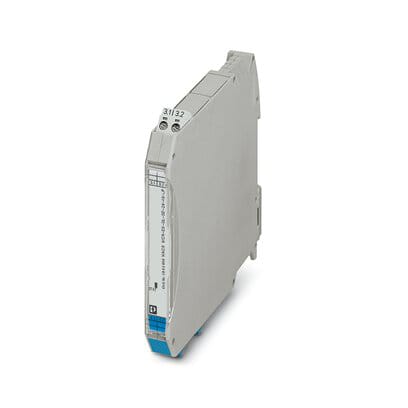

Phoenix Blocks - PHNX 2865609 MACX MCR-EX-SL-SD-24-48-LP
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463561584110
Catalog Number - 2865609
Country of Origin - Germany
Depths - 113.7 mm
ERP_productname - PHNX 2865609 MACX MCR-EX-SL-SD-24-48-LP
Packaging
1 ea
EAN
Part #
215717
Catalog #
2865609
Commercial reference
2865609
12-Digit UPC:
463561584110
Catalog Number:
2865609
Country of Origin:
Germany
Depths:
113.7 mm
ERP_productname:
PHNX 2865609 MACX MCR-EX-SL-SD-24-48-LP
Family Brand Name:
Phoenix Products
Heights:
112.5 mm
Widths:
12.5 mm
SoneparProductId:
SKU_US_73337683
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 48 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Screw connection. Features: Mechanically compatible with the DIN rail connector; Various output characteristic curves compatible with standard solenoid valves; Loop-powered: the required power is supplied via the control signal on the input side.; Installation in zone 2, protection type \"n\" (EN 60079-15) permitted; Up to SIL 3 according to IEC 61508; 2-way electrical isolation; Input: 19.2 V DC . 30 V DC; Output [Ex ia] IIC/[Ex ia] IIB - Approvals: cULus Listed; EAC Ex; IECEx; Functional Safety; ATEX; UL Listed; cUL Listed
