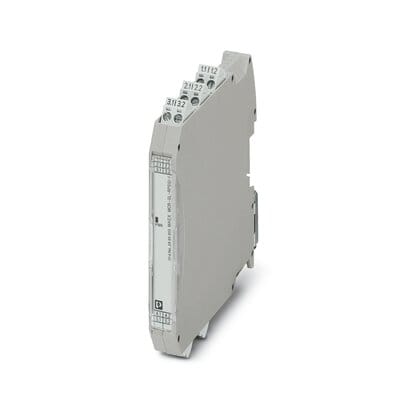

Phoenix Blocks - PHNX 2865955 MACX MCR-SL-RPSSI-I

Repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 . 20 mA signals to a load (active or passive). 3-way electrical isolation, SIL 2 in accordance with IEC 61508. Features: Power supply possible via DIN rail connector; Up to SIL 2 according to EN 61508; Installation in zone 2, protection type \"n\" (EN 60079-15) permitted; 3-way electrical isolation; Terminal point with 250 ? resistor to increase HART impedance for low-resistance systems; Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators; Bidirectional transmission of digital HART communication signals; 0/4 ... 20 mA output (active or passive); 0/4 ... 20 mA input (powered or not powered) - Approvals: cULus Listed; ATEX; EAC Ex; Functional Safety; DNV GL; UL Listed; cUL Listed
