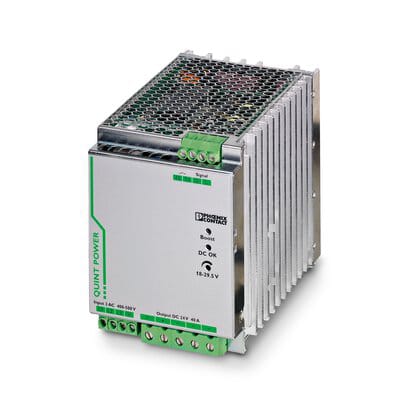

Phoenix Blocks - PHNX 2866802 QUINT-PS/ 3AC/24DC/40 POWER SUPLY
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463561528770
Amperage - 40 Amp
Catalog Number - 2866802
Country of Origin - Thailand
Depths - 176 mm
Packaging
1 ea
EAN
Part #
103709
Catalog #
2866802
Commercial reference
2866802
12-Digit UPC:
463561528770
Amperage:
40 Amp
Catalog Number:
2866802
Country of Origin:
Thailand
Depths:
176 mm
ERP_productname:
PHNX 2866802 QUINT-PS/ 3AC/24DC/40 POWER SUPLY
Family Brand Name:
Phoenix
Heights:
130 mm
Mounting Type:
DIN Rail
Output Voltage:
24 VDC
Type:
3-Phase, Primary Switched QUINT Power
Voltage:
10 Volt
Widths:
96 mm
SoneparProductId:
SKU_US_72239981
Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 40 A Features: High level of system availability even in the event of permanent phase failure; Reliable starting of difficult loads; Preventive function monitoring - Approvals: BV; cULus Listed; SEMI F47; EAC; cULus Recognized; Type approved; LR; RINA; NK; IECEE CB Scheme; DNV GL; ABS; CSA; UL Listed; cUL Listed; UL Recognized; cUL Recognized
