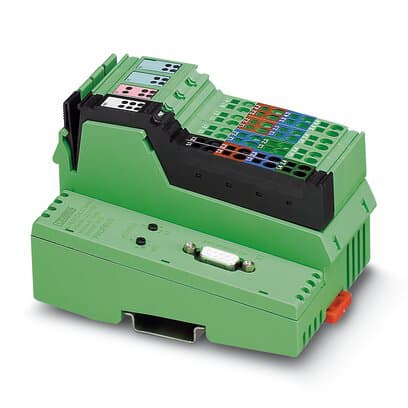

Phoenix Blocks - PHNX 2878696 IL MOD BK DI8 DO4-PAC

Inline, Bus coupler, Modbus/RTU, D-SUB-9 female connector, Digital inputs: 8, 24 V DC, connection technology: 3-conductor, Digital outputs: 4, 24 V DC, connection technology: 3-conductor, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including inline connectors, marking fields, and end plate Features: Modbus connection via 9-pos. D-SUB socket; Electrical isolation between Modbus interface and logic; Eight digital inputs, four digital outputs (on-board); Data transmission speed in Modbus of 1.2 kbps to 115.2 kbps (configurable); Rotary coding switches for setting the Modbus address and for configuration; Supported Modbus addresses from 1 to 99; Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps); Shipbuilding and UL approvals - Approvals: BV; EAC; ATEX; LR; DNV GL; ABS; UL Recognized; cUL Recognized
