Phoenix Blocks - PHNX 2897758 IL EIP BK DI8 DO4 2TX-PAC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356157921
Amperage - 0.98 Amp
Catalog Number - 2897758
Country of Origin - Germany
Depths - 71.5 mm
Packaging
1 ea
EAN
Part #
152890
Catalog #
2897758
Commercial reference
2897758
12-Digit UPC:
046356157921
Amperage:
0.98 Amp
Catalog Number:
2897758
Country of Origin:
Germany
Depths:
71.5 mm
ERP_productname:
PHNX 2897758 IL EIP BK DI8 DO4 2TX-PAC
Family Brand Name:
Phoenix
Heights:
119.8 mm
Mounting Type:
DIN Rail
Output Voltage:
24 V
Type:
In-Line
Voltage:
19.2-30 VDC
Widths:
80 mm
SoneparProductId:
SKU_US_72338413

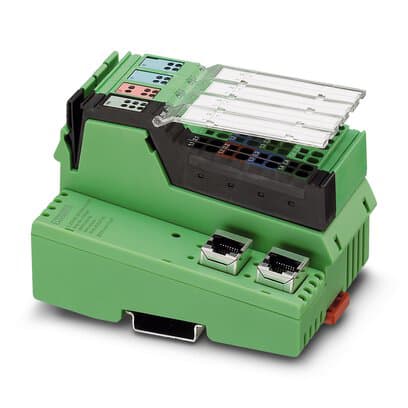

Inline, Bus coupler, EtherNet/IP™, RJ45 jack, Digital inputs: 8, 24 V DC, connection technology: 3-conductor, Digital outputs: 4, 24 V DC, connection technology: 3-conductor, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including Inline connectors and marking fields Features: Eight digital inputs, four digital outputs (on-board); EtherNet/IP™, Version 1.2; Web-based management; 2 RJ45 connections; Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps) - Approvals: cULus Listed; cULus Recognized; UL Listed; cUL Listed; UL Recognized; cUL Recognized
