Phoenix Blocks - PHNX 2900298 PLC-RPT- 24DC/ 1IC/ACT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463565073702
Catalog Number - 2900298
Country of Origin - Germany
Depths - 94 mm
ERP_productname - PHNX 2900298 PLC-RPT- 24DC/ 1IC/ACT
Packaging
10 ea
EAN
Part #
145534
Catalog #
2900298
Commercial reference
2900298
12-Digit UPC:
463565073702
Catalog Number:
2900298
Country of Origin:
Germany
Depths:
94 mm
ERP_productname:
PHNX 2900298 PLC-RPT- 24DC/ 1IC/ACT
Family Brand Name:
Phoenix Products
Heights:
80 mm
Widths:
14 mm
SoneparProductId:
SKU_US_73106891

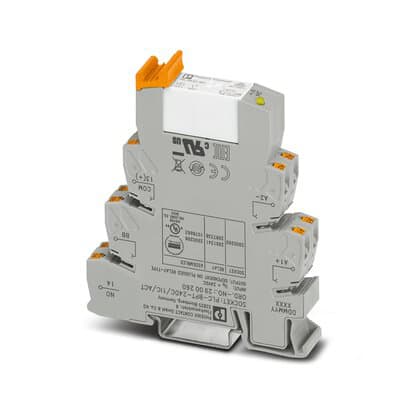

PLC-INTERFACE for high switch-on currents, consisting of PLC-BPT.../1 IC/ACT basic terminal block with push-in connection and plug-in miniature relay, for mounting on DIN rail NS 35/7,5, max. switch-on current up to 130 A, 1 N/O contact, input voltage 24 V DC Features: Direct connection of load return line thanks to actuator version; Efficient connection to system cabling using V8 adapter; Safe isolation according to DIN EN 50178 between coil and contact; Max. inrush current of 130 A; Functional plug-in bridges - Approvals: cULus Listed; cULus Recognized; EAC; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
