Phoenix Blocks - PHNX 2900509 PSR-SCP- 24UC/ESAM4/3X1/1X2/B
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463565135790
Catalog Number - 2900509
Country of Origin - Germany
Depths - 114.5 mm
ERP_productname - PHNX 2900509 PSR-SCP- 24UC/ESAM4/3X1/1X2/B
Packaging
1 ea
EAN
Part #
211843
Catalog #
2900509
Commercial reference
2900509
12-Digit UPC:
463565135790
Catalog Number:
2900509
Country of Origin:
Germany
Depths:
114.5 mm
ERP_productname:
PHNX 2900509 PSR-SCP- 24UC/ESAM4/3X1/1X2/B
Family Brand Name:
Phoenix Products
Heights:
99 mm
Widths:
22.5 mm
SoneparProductId:
SKU_US_74039916

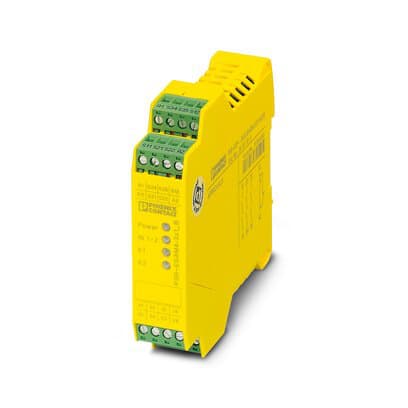

Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, 2-channel operation, 3 enabling current paths, nominal input voltage: 24 V DC, plug-in screw terminal block Features: Up to Cat.4/PL e according to EN ISO 13849-1, SILCL 3 according to EN 62061, SIL 3 according to IEC 61508; Manually monitored and automatic activation in a single device; Basic insulation; 3 enabling current paths, 1 signaling current path; Single and two-channel control - Approvals: cULus Listed; EAC; Functional Safety; UL Listed; cUL Listed
