Phoenix Blocks - PHNX 2903156 TRIO-PS-2G/3AC/24DC/40 **TARIFF FEE APPLIES**
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356960976
Amperage - 40 Amp
Catalog Number - 2903156
Country of Origin - China
Depths - 160 mm
Packaging
1 ea
EAN
Part #
199321
Catalog #
2903156
Commercial reference
2903156
12-Digit UPC:
046356960976
Amperage:
40 Amp
Catalog Number:
2903156
Country of Origin:
China
Depths:
160 mm
ERP_productname:
PHNX 2903156 TRIO-PS-2G/3AC/24DC/40 **TARIFF FEE APPLIES**
Family Brand Name:
Phoenix
Heights:
130 mm
Mounting Type:
DIN Rail
Output Voltage:
24 VDC
Type:
3-Phase, Primary Switched TRIO Power
Voltage:
10 Volt
Widths:
110 mm
SoneparProductId:
SKU_US_73654332

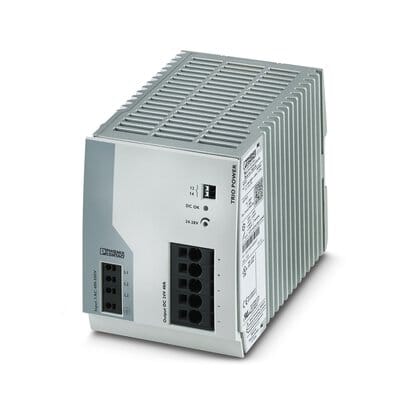

Primary-switched TRIO power supply for DIN rail mounting, input: 3-phase, output: 24 V DC/40 A, dynamic boost, tool-free fast connection technology for solid and stranded conductors with ferrule Features: Save time and costs, thanks to the Push-in connection and narrow design; Increase system availability, thanks to dynamic boost with 150% of the nominal current for five seconds; Maximum flexibility due to the wide temperature range from -25±C to +70±C and device startup at -40±C; Electrically robust, thanks to high electric strength; Mechanically robust, thanks to high vibration and shock resistance - Approvals: cULus Listed; cULus Recognized; EAC; UL Listed; cUL Listed; UL Recognized; cUL Recognized
