Phoenix Blocks - PHNX 2904374 UNO-PS/1AC/ 5DC/ 25W
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463568970824
Catalog Number - 2904374
Country of Origin - Vietnam
Depths - 84 mm
ERP_productname - PHNX 2904374 UNO-PS/1AC/ 5DC/ 25W
Packaging
1 ea
EAN
Part #
142410
Catalog #
2904374
Commercial reference
2904374
12-Digit UPC:
463568970824
Catalog Number:
2904374
Country of Origin:
Vietnam
Depths:
84 mm
ERP_productname:
PHNX 2904374 UNO-PS/1AC/ 5DC/ 25W
Family Brand Name:
Phoenix Products
Heights:
90 mm
Output Voltage:
5 V
Voltage:
10 Volt
Widths:
22.5 mm
SoneparProductId:
SKU_US_72160124

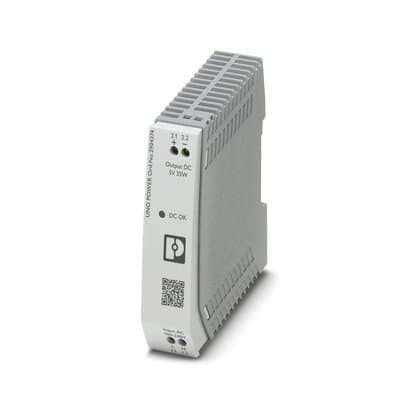

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 5 V DC/25 W Features: Flexible mounting by simply snapping onto the DIN rail; More space in the control cabinet with up to 20 % higher power density; Maximum energy efficiency, thanks to over 90 % efficiency and extremely low idling losses under 0.3 W; Outdoor installation, thanks to the wide temperature range from -25±C to +70±C - Approvals: cULus Listed; EAC; cULus Recognized; IECEE CB Scheme; UL Listed; cUL Listed; UL Recognized; cUL Recognized
