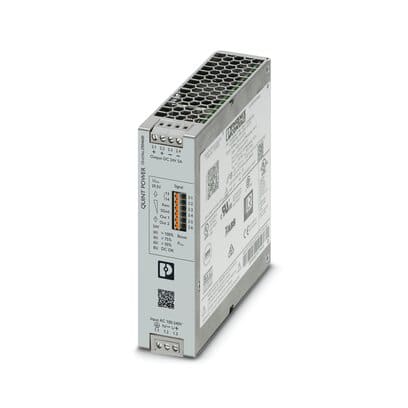

Phoenix Blocks - PHNX 2904600 QUINT4-PS/1AC/24DC/5

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/5 A Features: SFB technology trips standard circuit breakers selectively, loads that are connected in parallel continue working; Preventive function monitoring indicates critical operating states before errors occur; Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability; Easy system extension thanks to static boost; starting of difficult loads thanks to dynamic boost; High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds; Robust design thanks to metal housing and wide temperature range from -40±C to +70±C; Worldwide use thanks to the wide range input and international approval package - Approvals: BV; cULus Listed; cULus Recognized; EAC; Type approved; LR; PRS; IECEE CB Scheme; DNV GL; ABS; CSA; CSAus; UL Listed; cUL Listed; UL Recognized; cUL Recognized
