Phoenix Blocks - PHNX 2904951 PSR-MS25-1NO-1DO-24DC-S
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356904991
Catalog Number - 2904951
Country of Origin - Germany
Depths - 102.5 mm
ERP_productname - PHNX 2904951 PSR-MS25-1NO-1DO-24DC-S
Packaging
1 ea
EAN
Part #
150964
Catalog #
2904951
Commercial reference
2904951
12-Digit UPC:
046356904991
Catalog Number:
2904951
Country of Origin:
Germany
Depths:
102.5 mm
ERP_productname:
PHNX 2904951 PSR-MS25-1NO-1DO-24DC-S
Family Brand Name:
Phoenix Contact
Heights:
93.1 mm
Voltage:
2 Volt
Widths:
6.8 mm
SoneparProductId:
SKU_US_315967044

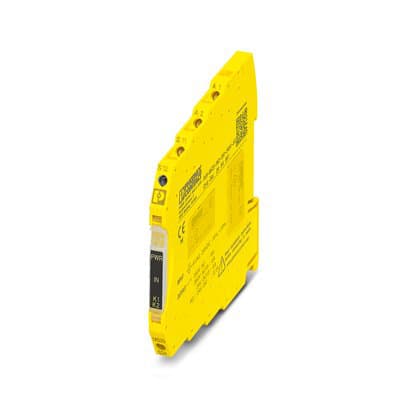

Safety relay for emergency stop and safety doors up to SIL 1, Cat. 1, PL c, depending on the application up to SIL 3, Cat. 4, PL e, 1-channel operation, manual, monitored start, 1 enabling current path, US = 24 V DC, fixed screw terminal block Features: Up to Cat. 1/PL c according to ISO 13849-1, SILCL 1 according to IEC 62061; Depending on the application, up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061; Low housing width of just 6.8 mm; Single-channel control; 1 enabling current path, 1 digital signal output; Manual and monitored activation - Approvals: cULus Listed; EAC; Functional Safety; UL Listed; cUL Listed
