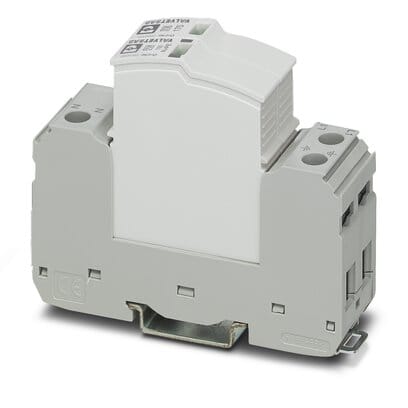

Phoenix Blocks - PHNX 2905348 VAL-SEC-T2-1S-175-FM
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463569480360
Catalog Number - 2905348
Country of Origin - Germany
Depths - 7.5 mm
ERP_productname - PHNX 2905348 VAL-SEC-T2-1S-175-FM
Packaging
1 ea
EAN
Part #
185116
Catalog #
2905348
Commercial reference
2905348
12-Digit UPC:
463569480360
Catalog Number:
2905348
Country of Origin:
Germany
Depths:
7.5 mm
ERP_productname:
PHNX 2905348 VAL-SEC-T2-1S-175-FM
Family Brand Name:
Phoenix Contact
Heights:
97.9 mm
Widths:
25.4 mm
SoneparProductId:
SKU_US_315733175
Plug-in surge arrester, in accordance with Type 2/Class II, for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with remote indication contact. Features: Varistor arrester with a low leakage current; High-performance gas-filled surge arrester for N/PE protection; Extremely narrow design, just 12 mm per position; High continuous voltage of 175 V AC for 120 V AC networks with high voltage fluctuations; Pluggable; Low voltage protection level of 0.85 kV; Optical, mechanical status indicator; With floating remote indication contact; Plugs can be checked with CHECKMASTER 2 - Approvals: CCA; cULus Recognized; EAC; IECEE CB Scheme; DNV GL; KEMA-KEUR; UL Recognized; cUL Recognized
