Phoenix Blocks - PHNX 2905744
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463569923676
Amperage - 0.5 Amp, 1 Amp, 2 Amp, 4 Amp, 6 Amp, 10 Amp
Catalog Number - 2905744
Conductor Size - 20-4 AWG
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
132618
Catalog #
2905744
Commercial reference
2905744
12-Digit UPC:
463569923676
Amperage:
0.5 Amp, 1 Amp, 2 Amp, 4 Amp, 6 Amp, 10 Amp
Catalog Number:
2905744
Conductor Size:
20-4 AWG
Country of Origin:
Germany
Depths:
121 mm
ERP_productname:
PHNX 2905744
Family Brand Name:
Phoenix
Heights:
130 mm
Interrupt Rating:
0.5 kV
Mounting Type:
35 mm DIN Rail
Voltage:
18-30 VDC
Widths:
41 mm
SoneparProductId:
SKU_US_125722320

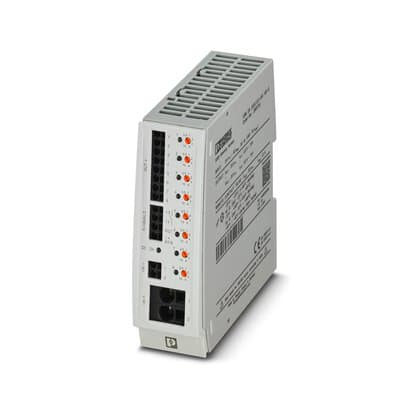

Multi-channel, electronic circuit breaker with active current limitation for protecting eight loads at 24 V DC in the event of overload and short circuit. With nominal current assistant and electronic locking of the set nominal currents. For installation on DIN rails. Features: Easy to configure, thanks to the nominal current assistant; Active current limitation to improve the capacity of the upstream power supply; Adjustable in increments per channel: from 0.5 A to 10 A; Easy system monitoring with early signaling and direct pickup of information at the product; Increased system availability with intelligent detection of under- and overvoltage - Approvals: cULus Listed; EAC; DNV GL; UL Listed; cUL Listed; UL Recognized
