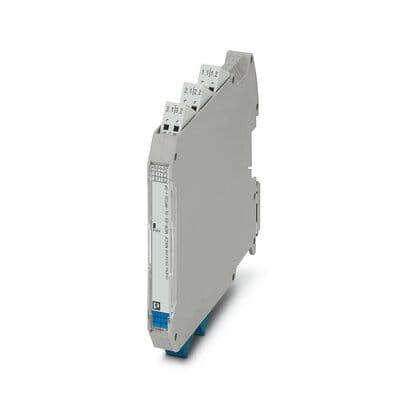

Phoenix Blocks - PHNX 2924016 MACX MCR-EX-SL-RPSSI-I-SP

Ex i repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 . 20 mA signals from the Ex area to a load (active or passive) in the safe area. 3-way electrical isolation, SIL 2 in accordance with IEC 61508, with Push-in connection Features: 0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered; Measuring transducer supply voltage > 16 V; 0/4 mA ... 20 mA output, active up to 1000 ? load or passive; Bidirectional HART signal transmission; Error indication according to NAMUR NE 43; SIL 2 according to IEC 61508/EN 61508; Installation in Ex zone 2 permitted; 3-way electrical isolation; Power supply possible via DIN rail connector; Plug-in connection terminals, push-in connection technology; Housing width: 12.5 mm; Minimal power dissipation; High transmission accuracy - Approvals: BV; cULus Listed; EAC Ex; Functional Safety; IECEx; ATEX; KC-s; DNV GL; UL Listed; cUL Listed
