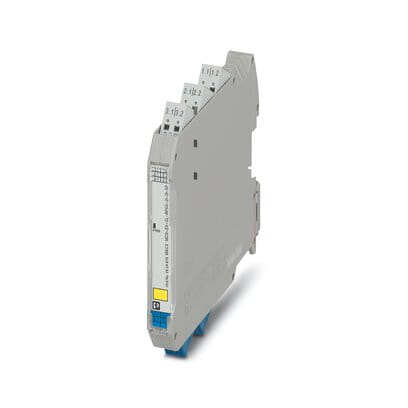

Phoenix Blocks - PHNX 2924676 MACX MCR-EX-SL-RPSS-2I-2I-SP 2-CH AI BARRIER

Ex i measuring transducer repeater power supply, 2-channel, HART-transparent. Supplies Ex i 2-conductor measuring transducers and transmits the 4.20 mA signal from the Ex area to the safe area. 5-way electrical isolation, Push-in connection, up to SIL 3, PL. Features: 2-channel; 4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered; Output 4 mA ... 20 mA, active; HART-compatible; Error indication according to NAMUR NE 43; Up to SIL 3 according to IEC/EN 61508; 5-way electrical isolation; Power supply possible via DIN rail connector; Installation in Ex zone 2 permitted; Plug-in connection terminals, push-in connection technology; Housing width: 12.5 mm; Minimal power dissipation; High transmission accuracy - Approvals: cULus Listed; Functional Safety; IECEx; ATEX; KC-s; UL Listed; cUL Listed
