Phoenix Blocks - PHNX 2940171 DEK-REL- 24/I/1 **TARIFF FEE APPLIES**

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 179180798950

  • Amperage - 6.5 mA

  • Catalog Number - 2940171

  • Country of Origin - China

  • Depths - 56 mm

Packaging

  • 1 ea

EAN

Part #

179597

Catalog #

2940171

Commercial reference

2940171

12-Digit UPC:

179180798950

Amperage:

6.5 mA

Catalog Number:

2940171

Country of Origin:

China

Depths:

56 mm

ERP_productname:

PHNX 2940171 DEK-REL- 24/I/1 **TARIFF FEE APPLIES**

Family Brand Name:

Phoenix Products

Heights:

80 mm

Voltage:

24 VAC/VDC

Widths:

6.2 mm

SoneparProductId:

SKU_US_72221707

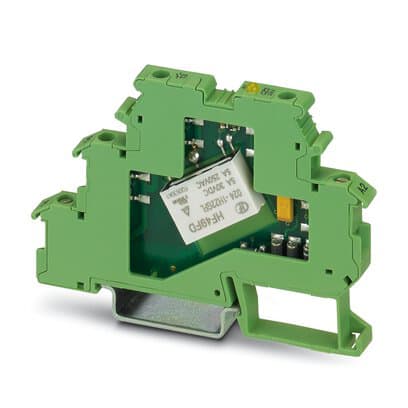

Relay terminal block, with soldered-in miniature relays, contact (AgNi+Au): small to medium loads, 1 N/O contact, input voltage 24 V AC/DC, for assembly on NS 35/7.5, terminal width 6.2 mm Features: Reduced costs as N terminal block is no longer required; Wiring reduced to a minimum; Up to 73% more space; 2-layer contact with hard gold plating for universal applications from 1 mA to 5 A continuous current; 2 kVrms electrical isolation between input and output; Integrated input circuit - Approvals: cULus Recognized; EAC; UL Recognized; cUL Recognized
