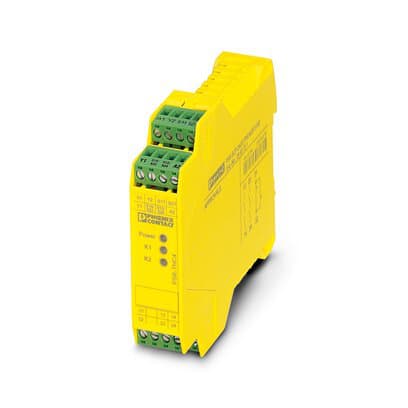

Phoenix Blocks - PHNX 2963721 PSR-SCP- 24UC/THC4/2X1/1X2

Safety relay for two-hand control devices in accordance with ISO 13851 type IIIC to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, synchronous activation monitoring < 0.5 s, 2 N/O contacts, 1 N/C contact, safe isolation, width: 22.5 mm, pluggable screw terminal block Features: For two-hand control devices according to EN 574 Type IIIC; Up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508; Two-channel control; Synchronous activation monitoring < 0.5 s; Automatic activation; Two enabling and one signaling current path - Approvals: cULus Listed; EAC; Functional Safety; UL Listed; cUL Listed
