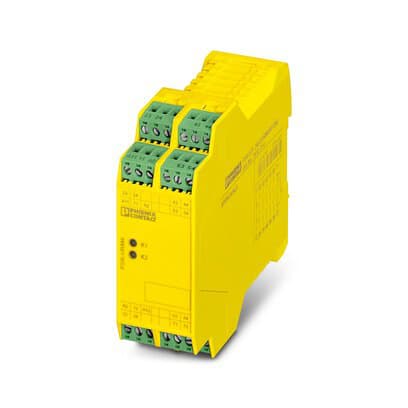

Phoenix Blocks - PHNX 2963734 PSR-SCP- 24UC/URM4/5X1/2X2
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918591122
Catalog Number - 2963734
Country of Origin - Germany
Depths - 114.5 mm
ERP_productname - PHNX 2963734 PSR-SCP- 24UC/URM4/5X1/2X2
Packaging
1 ea
EAN
Part #
187272
Catalog #
2963734
Commercial reference
2963734
12-Digit UPC:
017918591122
Catalog Number:
2963734
Country of Origin:
Germany
Depths:
114.5 mm
ERP_productname:
PHNX 2963734 PSR-SCP- 24UC/URM4/5X1/2X2
Family Brand Name:
Phoenix Contact
Heights:
99 mm
Widths:
35 mm
SoneparProductId:
SKU_US_315738101
Single-channel or two-channel contact extension, 5 N/O contacts, 1 N/C contact, 1 confirmation current path, together with basic device up to Cat. 4 PL e in accordance with EN ISO 13849 safe isolation, width: 35 mm, pluggable screw terminal block Features: Five enabling, one signaling, and one confirmation current path; Up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508; Single and two-channel control - Approvals: cULus Listed; EAC; Functional Safety; UL Listed; cUL Listed
