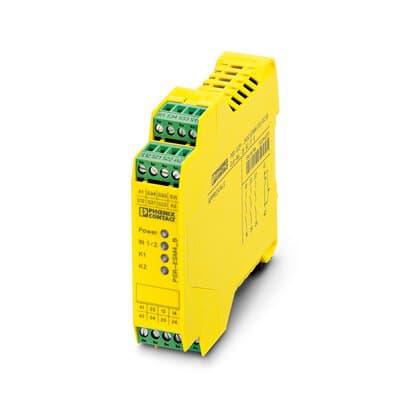

Phoenix Blocks - PHNX 2963776 RELAY
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179188236270
Catalog Number - 2963776
Country of Origin - Germany
Depths - 114.5 mm
ERP_productname - PHNX 2963776 RELAY
Packaging
1 ea
EAN
Part #
124721
Catalog #
2963776
Commercial reference
2963776
12-Digit UPC:
179188236270
Catalog Number:
2963776
Country of Origin:
Germany
Depths:
114.5 mm
ERP_productname:
PHNX 2963776 RELAY
Family Brand Name:
Phoenix Products
Heights:
99 mm
Widths:
22.5 mm
SoneparProductId:
SKU_US_73901669
Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, 2-channel operation, 3 enabling current paths, nominal input voltage: 24 V DC, plug-in screw terminal block Features: Up to Cat.4/PL e according to EN ISO 13849-1, SILCL 3 according to EN 62061, SIL 3 according to IEC 61508; Single and two-channel control; 3 enabling current paths, 1 signaling current path; Manual and monitored activation - Approvals: EAC; Functional Safety; UL Listed; cUL Listed
