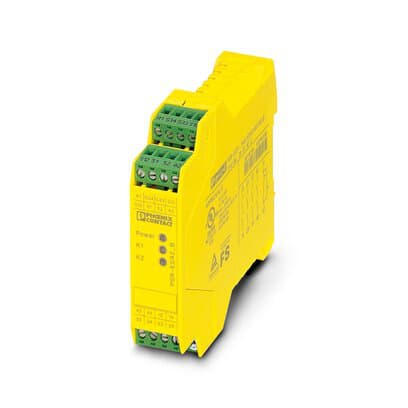

Phoenix Blocks - PHNX 2963802 PSR-SCP- 24UC/ESA2/4X1/1X2/B
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179188926614
Catalog Number - 2963802
Country of Origin - Germany
Depths - 114.5 mm
ERP_productname - PHNX 2963802 PSR-SCP- 24UC/ESA2/4X1/1X2/B
Packaging
1 ea
EAN
Part #
186264
Catalog #
2963802
Commercial reference
2963802
12-Digit UPC:
179188926614
Catalog Number:
2963802
Country of Origin:
Germany
Depths:
114.5 mm
ERP_productname:
PHNX 2963802 PSR-SCP- 24UC/ESA2/4X1/1X2/B
Family Brand Name:
Marathon Special Products
Heights:
99 mm
Widths:
22.5 mm
SoneparProductId:
SKU_US_254930328
Safety relay for emergency stop and safety door up to SIL 1, SIL CL 1, Cat. 1, PL c, depending on the application up to SIL 3, SIL CL 3, Cat. 4, PL e, single-channel operation, 4 enabling current paths, US = 24 V AC/DC, plug-in screw terminal blocks Features: Up to Cat. 1/PL c according to ISO 13849-1, SILCL 1 according to IEC 62061, SIL 1 according to IEC 61508; Depending on the application, up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508; Basic insulation; Single-channel control - Approvals: cULus Listed; EAC; Functional Safety; UL Listed; cUL Listed
