Phoenix Blocks - PHNX 2964500 DEK-REL-G24/21

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 179181177334

  • Catalog Number - 2964500

  • Country of Origin - China

  • Depths - 56 mm

  • ERP_productname - PHNX 2964500 DEK-REL-G24/21

Packaging

  • 1 ea

EAN

Part #

155599

Catalog #

2964500

Commercial reference

2964500

12-Digit UPC:

179181177334

Catalog Number:

2964500

Country of Origin:

China

Depths:

56 mm

ERP_productname:

PHNX 2964500 DEK-REL-G24/21

Family Brand Name:

Phoenix Products

Heights:

80 mm

Widths:

6.2 mm

SoneparProductId:

SKU_US_73208697

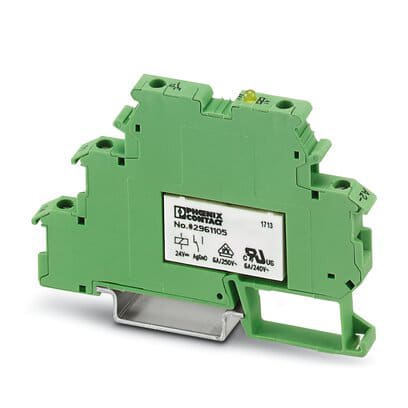

Relay terminal, with soldered-in miniature power relay, contacts (AgSnO): medium to high loads, 1 changeover contact, input voltage 24 V DC, for mounting on NS 35/7,5, terminal width 6.2 mm Features: Less wiring effort, thanks to the use of EB-DIK insertion bridges; Just 6.2 mm wide; Cadmium-free relay contacts; Less storage, since PDT, N/O or N/C contacts can be wired; High switching power of 250 V AC/6 A; Safe isolation according to DIN EN 50178 (VDE 0160); Relay housing with IP67 protection; LED for indicating the switching state; 4 kV electrical isolation between input and output - Approvals: cULus Recognized; EAC; UL Recognized; cUL Recognized
