Phoenix Blocks - PHNX 2980636 PLC-OSC- 24DC/ 48DC/500/W
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463560513784
Catalog Number - 2980636
Country of Origin - Germany
Depths - 86 mm
ERP_productname - PHNX 2980636 PLC-OSC- 24DC/ 48DC/500/W
Packaging
10 ea
EAN
Part #
147242
Catalog #
2980636
Commercial reference
2980636
12-Digit UPC:
463560513784
Catalog Number:
2980636
Country of Origin:
Germany
Depths:
86 mm
ERP_productname:
PHNX 2980636 PLC-OSC- 24DC/ 48DC/500/W
Family Brand Name:
Phoenix Products
Heights:
80 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_58311924

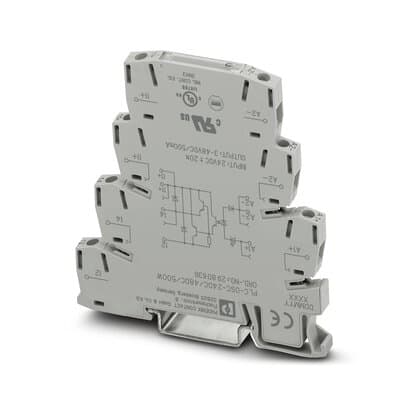

PLC-INTERFACE with electronic changeover contact, consisting of PLC-BSC.../21 basic terminal block with screw connection and integrated miniature solid-state relay, for mounting on NS 35/7,5 DIN rail, 1 changeover contact, input: 24 V DC, output: 3 V DC ... 48 V DC/500 mA Features: Wear-free switching with no contact bounce; Resistant to vibrations and shocks; Protective circuit in input and output; Status indicator; Electronic PDT output of up to 48 V DC/500 mA; Option of bridging adjacent modules - Approvals: cULus Listed; cULus Recognized; EAC; UL Listed; cUL Listed; UL Recognized; cUL Recognized
