Phoenix Blocks - PHNX 2981020 PSR-SCP- 24DC/ESP4/2X1/1X2
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189110654
Catalog Number - 2981020
Country of Origin - Germany
Depths - 114.5 mm
ERP_productname - PHNX 2981020 PSR-SCP- 24DC/ESP4/2X1/1X2
Packaging
1 ea
EAN
Part #
183710
Catalog #
2981020
Commercial reference
2981020
12-Digit UPC:
179189110654
Catalog Number:
2981020
Country of Origin:
Germany
Depths:
114.5 mm
ERP_productname:
PHNX 2981020 PSR-SCP- 24DC/ESP4/2X1/1X2
Family Brand Name:
Phoenix Products
Heights:
99 mm
Widths:
22.5 mm
SoneparProductId:
SKU_US_73576542

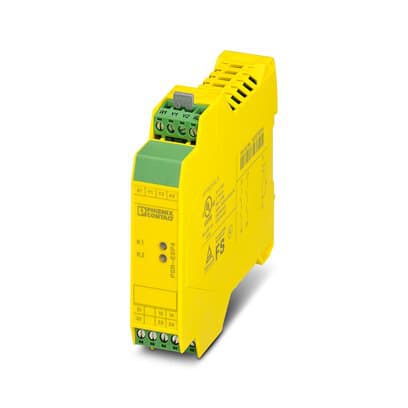

Safety relay for SIL 3 high- and low-demand applications, also approved in accordance with EN 50156, Germanischer Lloyd, and EN ISO 13849, emergency stop and safety door monitoring, 1-channel, 2 enabling current paths, 1 signal contact, plug-in screw terminal blocks, width: 22.5 mm Features: Up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508; Single-channel control; Safe isolation; With inrush current reduction, therefore suitable for coupling to failsafe controllers (PSR-ESP4) - Approvals: cULus Listed; EAC; Functional Safety; DNV GL; UL Listed; cUL Listed
