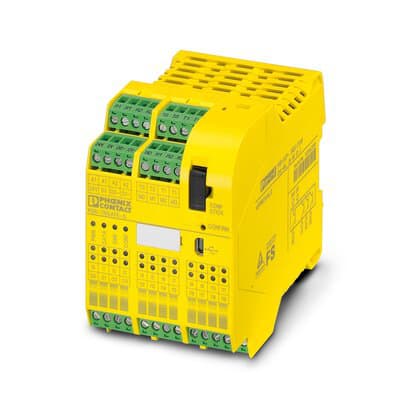

Phoenix Blocks - PHNX 2986229 PSR-SCP- 24DC/TS/S

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 463564771920

  • Catalog Number - 2986229

  • Country of Origin - Germany

  • Depths - 114.5 mm

  • ERP_productname - PHNX 2986229 PSR-SCP- 24DC/TS/S

Packaging

  • 1 ea

EAN

Part #

186446

Catalog #

2986229

Commercial reference

2986229

12-Digit UPC:

463564771920

Catalog Number:

2986229

Country of Origin:

Germany

Depths:

114.5 mm

ERP_productname:

PHNX 2986229 PSR-SCP- 24DC/TS/S

Family Brand Name:

Phoenix Products

Heights:

99 mm

Output Voltage:

0 V

Widths:

67.5 mm

SoneparProductId:

SKU_US_73894192

Freely configurable safety module with 20 safe inputs and 4 safe outputs; 4 alarm, 2 clock, and 2 ground switching outputs; diagnostics possible via bus gateways, up to SIL 3, Cat.4/PL e, SIL 3, EN 50156, plug-in screw connection terminal blocks Features: Freely configurable safety module for monitoring emergency stops, safety doors, light grids, etc.; With 20 safe inputs, 4 safe outputs, 4 alarm outputs, and 2 clock outputs on a design width of just 67.5 mm; Multifunctional use for a wide range of safety functions; Including IFS-CONFSTICK memory stick for easily storing and saving the configuration; Easy graphical configuration with the SAFECONF software; Easy graphical configuration instead of complex programming; Quick startup thanks to comprehensive simulation and test functions; Option for connecting fieldbus gateways for diagnostics and signaling functions; Up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508; EN 50156 - Approvals: cULus Listed; Functional Safety; UL Listed; cUL Listed
