Phoenix Blocks - PHNX 3003923 USLKG10N
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181070796
Amperage - 76 Amp
Catalog Number - 3003923
Color - Green,Yellow
Country of Origin - Germany
Packaging
50 ea
EAN
Part #
194338
Catalog #
3003923
Commercial reference
3003923
12-Digit UPC:
179181070796
Amperage:
76 Amp
Catalog Number:
3003923
Color:
Green,Yellow
Country of Origin:
Germany
ERP_productname:
PHNX 3003923 USLKG10N
Family Brand Name:
Phoenix Contact
Heights:
45.8 mm
Length:
42.5 mm
Mounting Type:
PE Foot
Number of Poles:
2 Pole
Voltage:
750 Volt, 8 kV Surge
Widths:
10.2 mm
SoneparProductId:
SKU_US_71730675

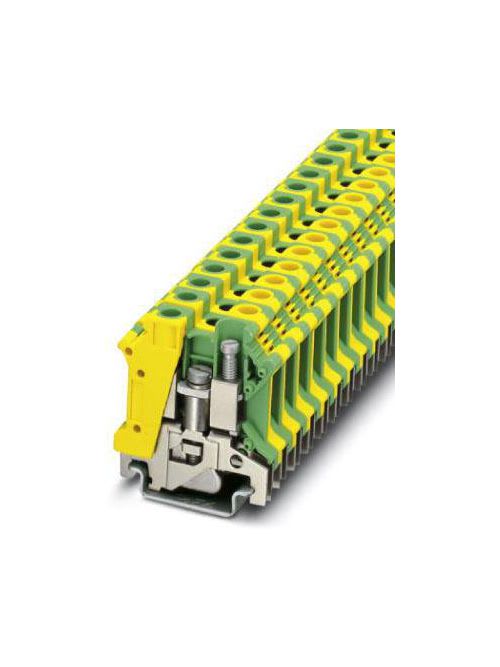

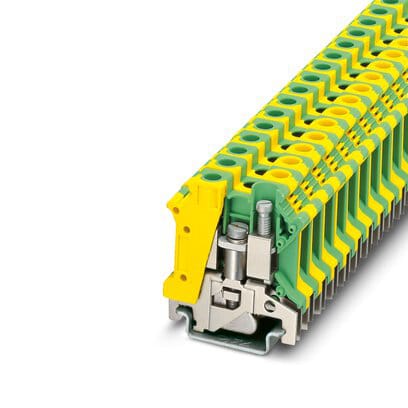

Ground modular terminal block, number of connections: 2, connection method: Screw connection, Rated cross section: 10 mm., cross section: 0.5 mm. - 16 mm., mounting: PE foot with mounting screw, M4, mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow Approvals: BV; cULus Recognized; EAC Ex; EAC; LR; IECEx; IECEE CB Scheme; DNV GL; ATEX; KEMA-KEUR; KR; CSA; UL Recognized; cUL Recognized
