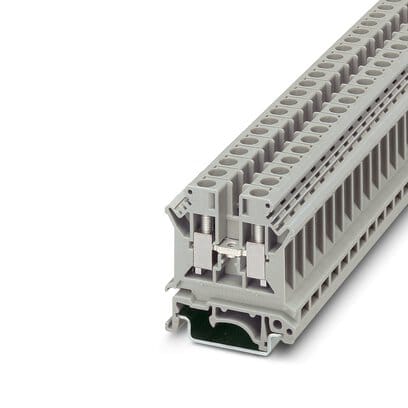

Phoenix Blocks - PHNX 3004524 UK6N UNIV TERM
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180908212
Amperage - 41 Amp
Catalog Number - 3004524
Color - Gray
Conductor Size - 0.2 - 10 mm., 0.2 - 6 mm.
Packaging
1 ea
EAN
Part #
194584
Catalog #
3004524
Commercial reference
3004524
12-Digit UPC:
179180908212
Amperage:
41 Amp
Catalog Number:
3004524
Color:
Gray
Conductor Size:
0.2 - 10 mm., 0.2 - 6 mm.
Country of Origin:
China
ERP_productname:
PHNX 3004524 UK6N UNIV TERM
Family Brand Name:
Phoenix
Length:
42.5 mm
Mounting Type:
NS 35/7.5, NS 35/15, NS 32 DIN Rail
Torque Rating:
1.5 - 1.8 N-m
Type:
Feed-Through
Voltage:
800 Volt
Widths:
8.2 mm
SoneparProductId:
SKU_US_193414779
Feed-through terminal block, nom. voltage: 800 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 6 mm., cross section: 0.2 mm. - 10 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: All universal terminal blocks in the UK... series can also be used in the Ex e area according to IEC/EN 60079 as standard; The corresponding EC-type examination numbers for Ex approval can be found in the technical connection data - Approvals: cULus Recognized; EAC Ex; EAC; LR; IECEx; GL; NK; IECEE CB Scheme; DNV GL-EX; DNV GL; ATEX; KEMA-KEUR; RS; KR; CSA; UL Recognized; cUL Recognized
