Phoenix Blocks - PHNX 3005837 UK 1 5 N
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181391792
Catalog Number - 3005837
Color - Gray
Country of Origin - China
ERP_productname - PHNX 3005837 UK 1 5 N
Packaging
1 ea
EAN
Part #
201864
Catalog #
3005837
Commercial reference
3005837
12-Digit UPC:
179181391792
Catalog Number:
3005837
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3005837 UK 1 5 N
Family Brand Name:
Phoenix Products
Length:
42.5 mm
Widths:
4.2 mm
SoneparProductId:
SKU_US_71919141

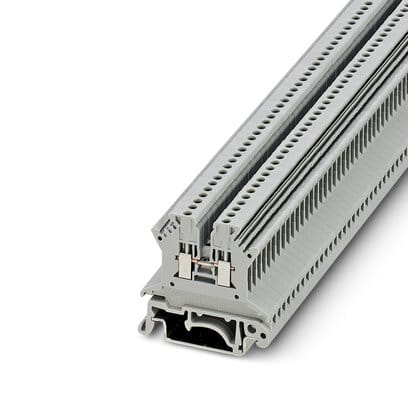

Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Screw connection, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: Universal foot which can be used on NS 35... and NS 32... DIN rails; The UK universal screw terminal block series has the typical features which are decisive for practical applications; Potential distribution via fixed bridges in the terminal center or insertion bridges in the clamping space - Approvals: BV; cULus Recognized; EAC Ex; EAC; LR; IECEx; DNV GL; ATEX; KR; UL Recognized; cUL Recognized
