Phoenix Blocks - PHNX 3006043 UK 16 N
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180913094
Amperage - 76 Amp
Catalog Number - 3006043
Color - Gray
Country of Origin - China
Packaging
1 ea
EAN
Part #
215149
Catalog #
3006043
Commercial reference
3006043
12-Digit UPC:
179180913094
Amperage:
76 Amp
Catalog Number:
3006043
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3006043 UK 16 N
Family Brand Name:
Phoenix
Length:
42.5 mm
Number of Poles:
2 Pole
Type:
Feed-Through
Voltage:
800 Volt Nominal, 8 kV Surge
Widths:
12.2 mm
SoneparProductId:
SKU_US_72015616

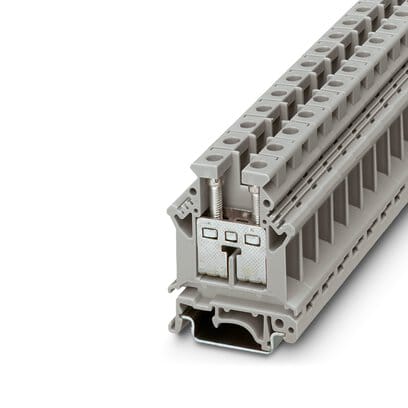

Feed-through terminal block, nom. voltage: 800 V, nominal current: 76 A, connection method: Screw connection, Rated cross section: 16 mm., cross section: 2.5 mm. - 25 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: All universal terminal blocks in the UK... series can also be used in the Ex e area according to IEC/EN 60079 as standard; The corresponding EC-type examination numbers for Ex approval can be found in the technical connection data - Approvals: BV; cULus Recognized; EAC Ex; EAC; LR; IECEx; GL; NK; IECEE CB Scheme; DNV GL-EX; DNV GL; ATEX; RS; KEMA-KEUR; KR; CSA; UL Recognized; cUL Recognized
