Phoenix Blocks - PHNX 3007204 UKK 5-HESI (5X20)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181559888
Catalog Number - 3007204
ERP_productname - PHNX 3007204 UKK 5-HESI (5X20)
Family Brand Name - Phoenix Products
Length - 86.5 mm
Packaging
1 ea
EAN
Part #
156713
Catalog #
3007204
Commercial reference
3007204
12-Digit UPC:
179181559888
Catalog Number:
3007204
ERP_productname:
PHNX 3007204 UKK 5-HESI (5X20)
Family Brand Name:
Phoenix Products
Length:
86.5 mm
Number of Positions:
1
Widths:
8.2 mm
SoneparProductId:
SKU_US_71803679

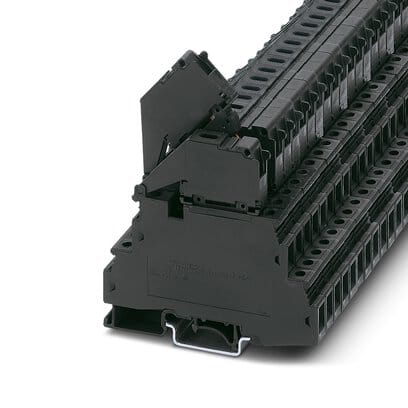

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 400 V, nominal current: 32 A, number of positions: 1, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.2 mm.- 4 mm., connection method: Screw connection, Rated cross section: 1 mm., cross section: 0.2 mm.- 4 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: black Features: Versions with LED; Compact double-level fuse terminal block - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
